Repair scratches, dents and surface imperfections in seconds with SPECTRATEK UV LED curing systems. Designed for fast, targeted curing of compatible UV-curable putties, fillers, primers and coatings, these portable and mobile lamps help manufacturers reduce repair delays and keep finished products moving through production.
Ideal for evaluating repair applications involving doors, frames, windows, cabinets, furniture, architectural millwork and other manufactured products. Whether damage is discovered during production, quality control, transportation or installation, UV LED technology can significantly accelerate compatible repair processes.
Apply a compatible UV-A curable filler or putty, expose the repair to the appropriate SPECTRATEK UV LED lamp, verify curing, then sand and continue finishing according to the repair material’s instructions.
SpectraPro NUVA UV-A Curable Filler and Refinish Putty are marketed for fast repairs and are advertised as tested with the SPECTRATEK UV LED lamp range. The manufacturer lists curing times of 15 to 60 seconds under suitable conditions, with no separate hardener or mixing required.
NUVA products are advertised for use on many metal and plastic surfaces. Wood, fiberglass, composites and other substrates require separate compatibility confirmation.
Selected SPECTRATEK systems combine 365 nm and 395 nm UV-A wavelengths to initiate curing in compatible photoreactive materials. Unlike infrared systems, which provide radiant heat, UV LED lamps activate a chemical curing reaction in specially formulated products.
From a scratched door or cabinet panel to a finishing defect discovered during final inspection, SPECTRATEK UV LED curing equipment offers a practical approach to reducing localized repair and rework time.
Eugénie International can help manufacturers evaluate handheld and mobile UV curing solutions, compatible repair materials and suitable applications for their finishing operations.
UV LED curing requires compatible UV-curable products. Final curing time, adhesion, sanding readiness and substrate compatibility must be validated for each repair application.
| Model | Configuration | Application |
|---|---|---|
| UVTEK 100 | 20 W UV LED flashlight, 395 nm | Small, localized curing areas |

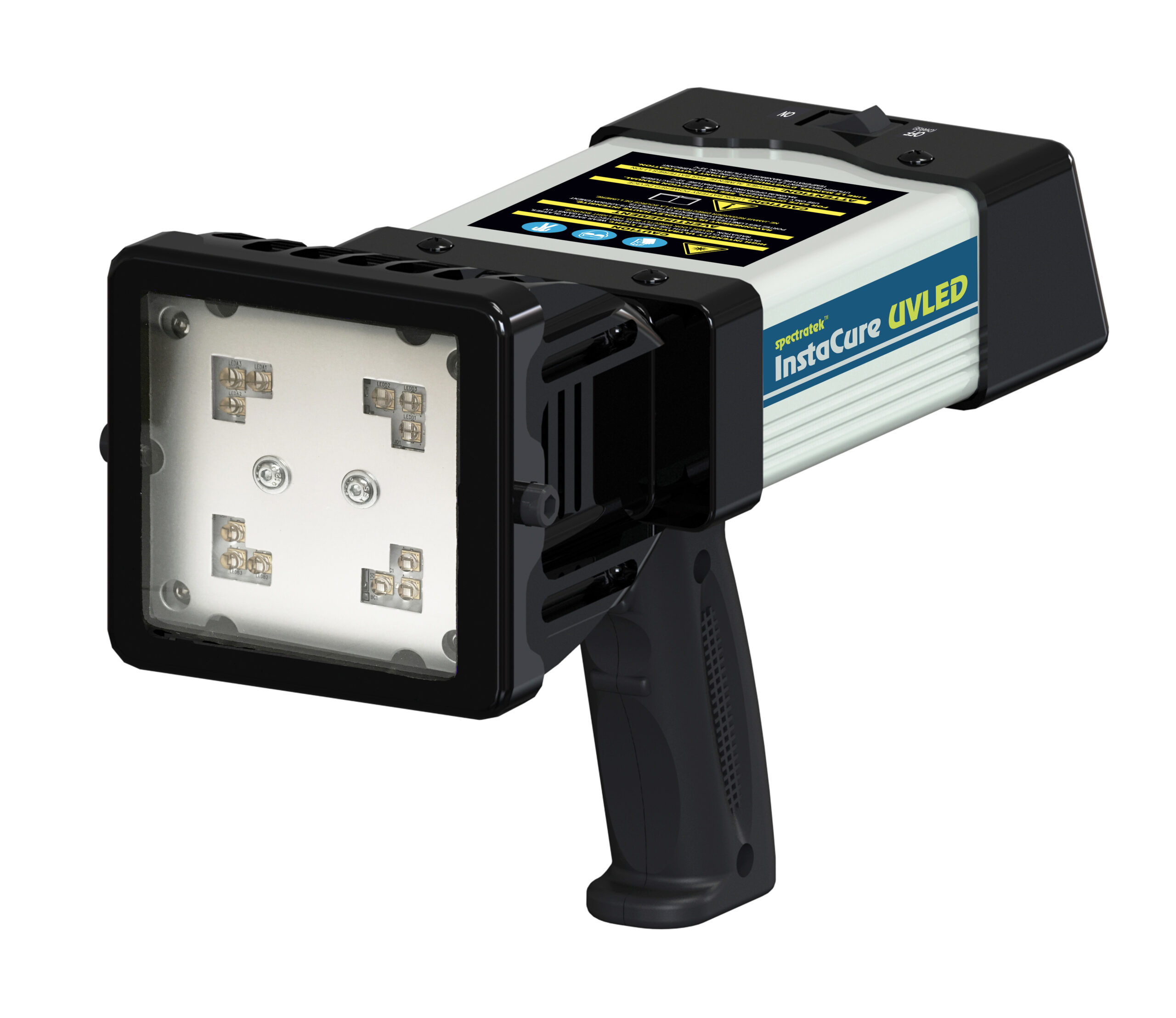

| InstaCure UVLED | 55 W cordless handheld lamp, 365/395 nm | Portable surface repairs and touch-ups |

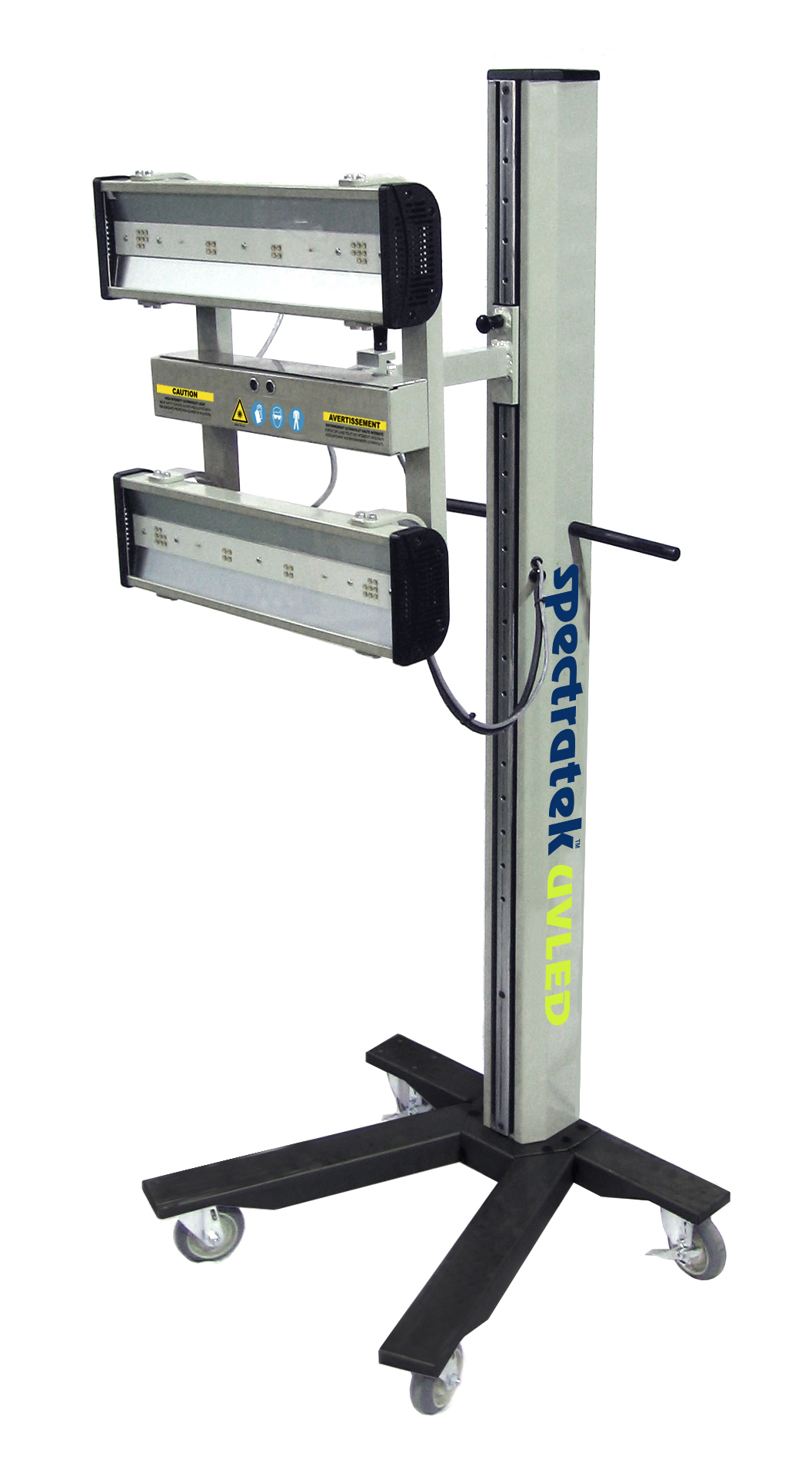

| UVTEK 2000 | Two-cassette mobile UV LED system | Medium-sized curing areas |

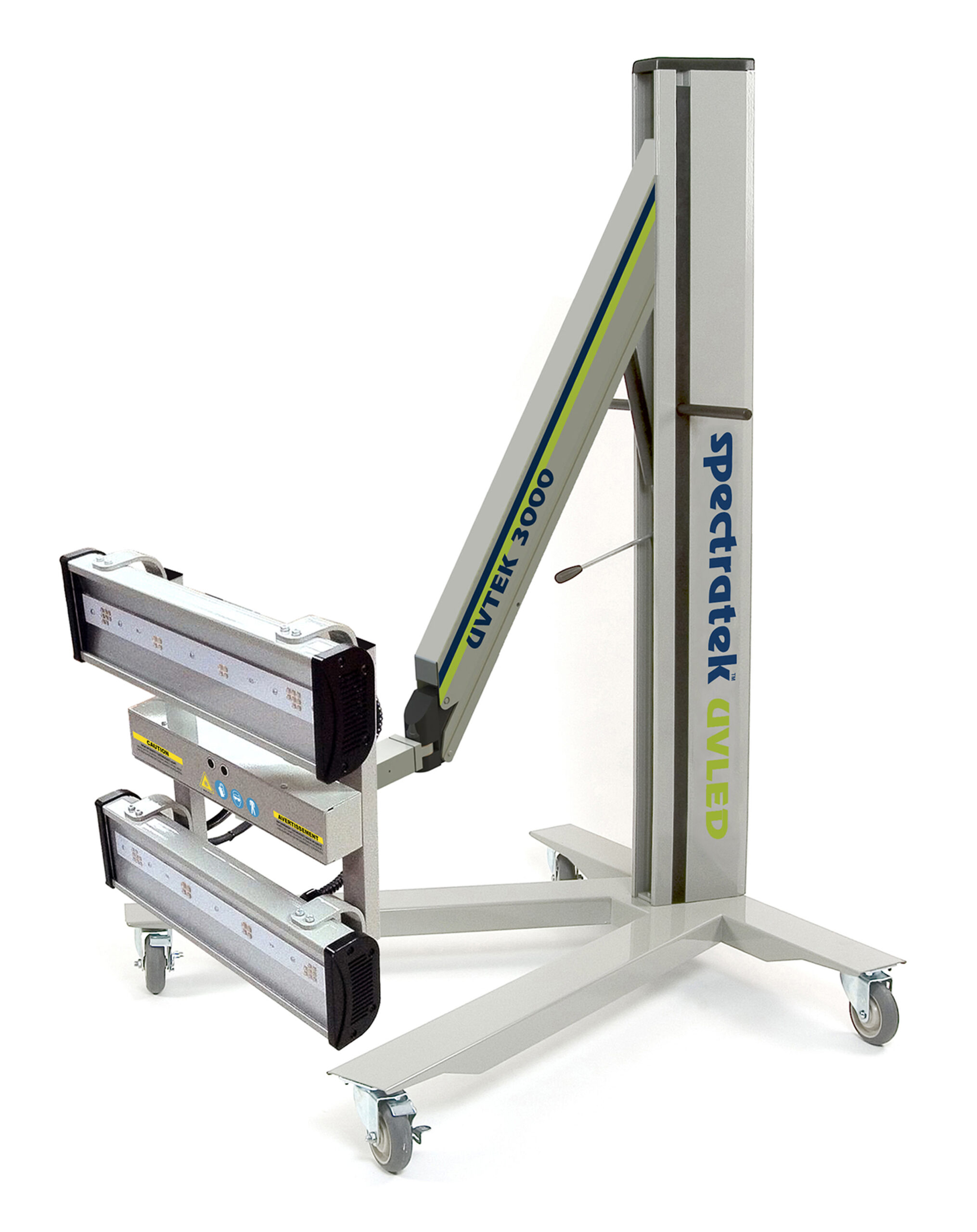

| UVTEK 3000 | Two-cassette mobile system with articulated support | Adjustable positioning for larger repairs |

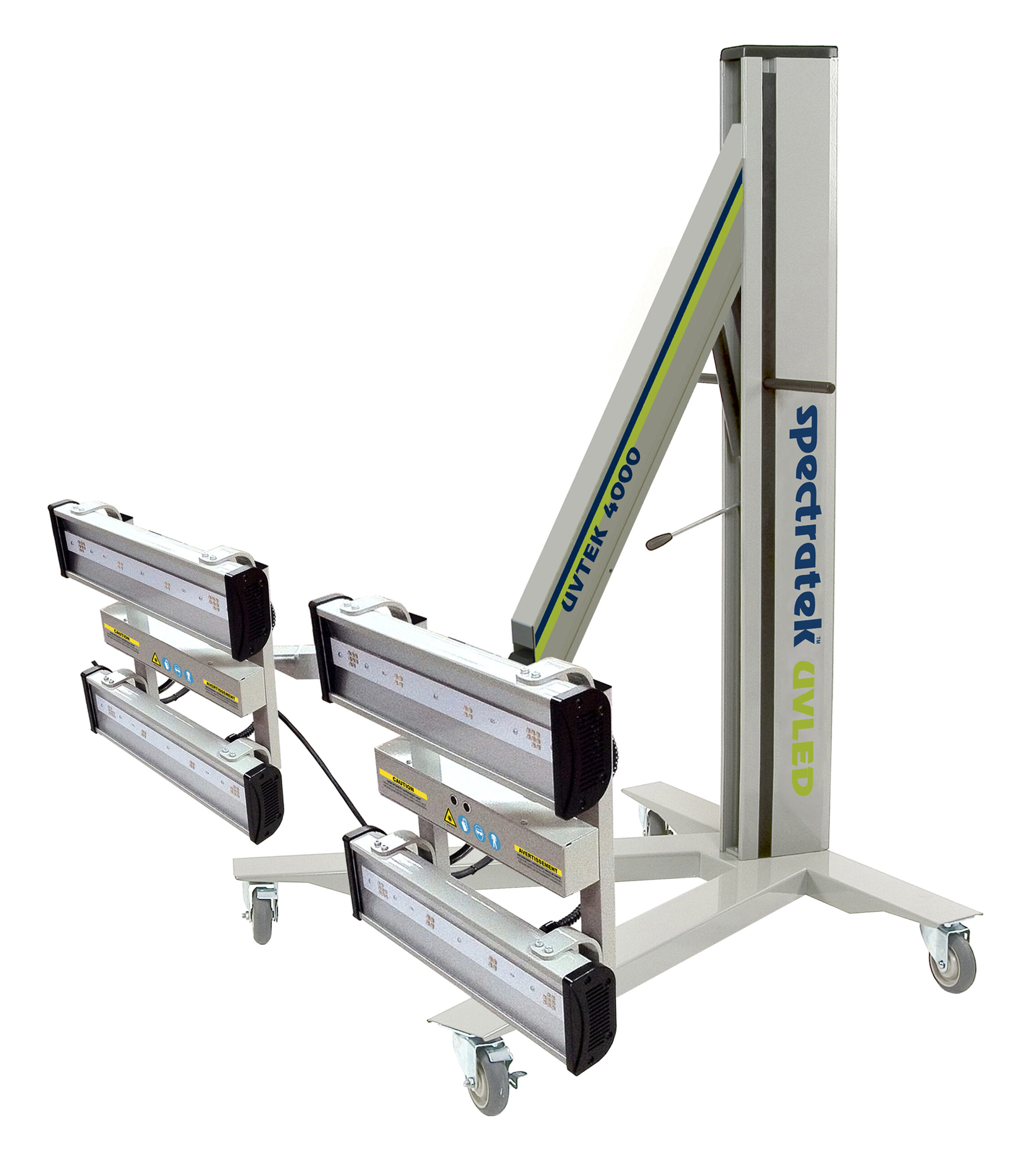

| UVTEK 4000 | Four-cassette mobile UV LED system | Extended curing coverage |
SpectraPro NUVA UV-A Curable Filler
SpectraPro NUVA UV-A Refinish Putty
Technical note: Manufacturer-listed curing times are reference values and do not guarantee results for every repair material. UV wavelength, intensity, working distance, pigmentation, filler thickness and exposure time affect the curing process. NUVA’s advertised metal and plastic compatibility does not establish approval for every wood, fiberglass or composite application.
Operator safety: Appropriate UV-rated eye protection, skin protection, shielding, training and exposure controls are required. Always follow the equipment and repair-material manufacturers’ instructions.
| SPECTRATEK UV LED Curing & Surface Repair — Frequently Asked Questions | |
| Answers about UV LED curing lamps, UV-A curable putty, fast surface repairs, door and cabinet finishing, repair-material compatibility and manufacturing rework. | |
| What are SPECTRATEK UV LED curing systems? | SPECTRATEK UV LED systems are portable and mobile curing lamps designed for compatible UV-curable fillers, putties, primers and coatings. They support localized repairs, touch-ups and selected surface-finishing applications. |
| How can UV LED curing speed up surface repairs? | Compatible UV-curable repair compounds react to ultraviolet light and can harden in seconds or minutes. This can shorten the waiting period before sanding, inspection or further finishing. |
| What is NUVA UV-A curable putty? | SpectraPro NUVA is a UV-A curable repair-product family that includes a filling compound and a finer refinish putty. The products are marketed for compatible surface defects and are advertised as tested with SPECTRATEK UV LED lamps. |
| How fast does NUVA UV-A filler cure? | The NUVA manufacturer advertises 15–60-second UV curing times under suitable conditions. Actual curing depends on applied thickness, repair dimensions, UV intensity, exposure distance and the material being repaired. |
| What is the difference between NUVA filler and NUVA refinish putty? | The NUVA UV-A Curable Filler is marketed for defects such as dents, cracks and scratches. The NUVA UV-A Refinish Putty is intended for smaller imperfections such as pinholes and fine surface preparation. |
| Does NUVA putty require a separate hardener? | According to the manufacturer, NUVA UV-A repair products do not require a separately mixed hardener. The curing reaction is activated through appropriate ultraviolet light exposure. |
| Can UV LED curing be used to repair scratches on doors? | Potentially. A suitable UV-curable repair compound can be applied to certain door surfaces, cured with a compatible UV LED lamp and prepared for refinishing. The substrate, repair material and final finish must be compatible. |
| Is NUVA putty suitable for wood doors and cabinets? | The supplied NUVA product information specifically highlights metal and plastic surfaces. Compatibility with wood doors, cabinets, fiberglass and other substrates must be confirmed with the material manufacturer or validated through testing before use. |
| Are UV-curable wood fillers available? | Yes. UV-curable fillers formulated for suitable woodworking and finishing applications exist. However, each product must be verified for the substrate, repair depth and UV curing equipment being used. |
| Can UV LED curing be used for repairs discovered during shipping or installation? | Portable UV LED systems may be useful for controlled touch-up repairs when compatible materials and proper safety conditions are available. Repair appearance, adhesion and durability must meet the finished product’s requirements. |
| Can UV putty be sanded immediately after curing? | Many properly cured UV repair compounds are designed for rapid sanding and finishing. The technician must verify that the material has achieved the required cure and follow the repair-product manufacturer’s instructions. |
| Can I cure conventional wood filler or regular paint with a UV LED lamp? | Not unless the material is formulated to respond to the lamp’s ultraviolet output. Conventional air-drying fillers and paints do not automatically cure faster when exposed to UV LED light. |
| What is the difference between the UVTEK 100 and InstaCure UVLED? | The UVTEK 100 is a 20 W UV LED flashlight using a 395 nm wavelength. The InstaCure UVLED is a 55 W cordless handheld lamp offering 365 nm and 395 nm dual-wavelength technology. |
| Which SPECTRATEK UV LED models are available? | The product family includes the UVTEK 100 flashlight, InstaCure UVLED handheld system and mobile UVTEK 2000, UVTEK 3000 and UVTEK 4000 configurations. |
| When should I choose a mobile UV LED curing system? | Mobile systems are useful when the required treatment area exceeds that of a handheld lamp or when adjustable lamp positioning helps with the repair process. The appropriate configuration depends on repair size, geometry and UV-curable material requirements. |
| What are 365 nm and 395 nm UV LED wavelengths? | These are UV-A wavelength ranges used by compatible curing systems. The required wavelength depends on the repair material’s photoinitiators and the UV exposure needed to achieve proper curing. |
| What is the difference between UV LED and infrared curing? | UV LED curing activates a chemical reaction in specially formulated UV-curable products. Infrared curing uses radiant heating to support compatible thermal drying and curing. UV LED is particularly useful for certain fast localized repair processes. |
| Does UV LED curing eliminate the need to repaint a repaired area? | No. UV curing can accelerate the hardening of compatible fillers or coatings, but sanding, priming, painting, colour matching and other finishing steps may still be necessary depending on the repair. |
| Can UV LED curing reduce rework bottlenecks in door manufacturing? | For compatible repairs, rapid curing may reduce the time a finished door spends waiting for a filler or surface-repair compound to harden. This can help streamline quality-control and touch-up operations. |
| Is UV LED curing safe for operators? | Ultraviolet radiation can injure eyes and skin. Suitable protective equipment, shielding, exposure controls and operator training are required. Operators must follow the equipment and repair-product manufacturers’ instructions. |
| Does Eugénie International offer support for selecting UV LED equipment? | Yes. Eugénie International can help manufacturers evaluate SPECTRATEK UV LED curing systems for repair stations, manufacturing rework and compatible industrial finishing applications. |
Scratches, dents, pinholes and other surface imperfections can create unnecessary delays in door, cabinet, window and millwork manufacturing. SPECTRATEK UV LED curing systems provide a faster approach to curing compatible fillers, putties and finishing materials.
With portable handheld lamps, larger mobile systems and compatible UV-A repair products such as SpectraPro NUVA, manufacturers can explore repair workflows that reduce waiting time between filling, curing, sanding and refinishing.
Fill the defect. Cure the material. Sand and finish. Keep production moving.
Are scratches, dents, pinholes and other finishing defects holding up completed doors, cabinets or manufactured components?
SPECTRATEK UV LED curing lamps, combined with appropriate UV-curable repair materials, can help reduce unnecessary waiting during localized repairs. Contact Eugénie International to discuss your substrates, repair processes, required curing areas and the available handheld or mobile configurations.
Don’t let a small surface defect create a major production delay. With SPECTRATEK UV LED curing technology and compatible UV-A curable repair products, many localized filling and touch-up processes can be accelerated significantly.
Contact Eugénie International to explore UV LED curing lamps for fast surface repairs, quality control and industrial finishing.
